Axioma 4WD Autonomous Mobile Robot

Quick Start

# 1. Install ROS2 Humble (Ubuntu 22.04)
sudo apt update && sudo apt install ros-humble-desktop

# 2. Install project dependencies
sudo apt install -y python3-colcon-common-extensions python3-rosdep python3-argcomplete \
                     ros-humble-ros-gz ros-humble-navigation2 ros-humble-nav2-bringup \
                     ros-humble-robot-state-publisher ros-humble-joint-state-publisher \
                     ros-humble-slam-toolbox ros-humble-teleop-twist-keyboard \
                     ros-humble-rviz2 ros-humble-xacro ros-humble-tf2-tools

# 3. Clone and build
mkdir -p ~/ros2/axioma_ws/src
cd ~/ros2/axioma_ws/src
git clone https://github.com/MrDavidAlv/Axioma_robot.git .
cd ~/ros2/axioma_ws
colcon build --symlink-install
source install/setup.bash

# 4. Launch SLAM (mapping)
ros2 launch axioma_bringup slam_bringup.launch.py

# Or launch autonomous navigation (requires a saved map)
ros2 launch axioma_bringup navigation_bringup.launch.py

See Installation and Usage for detailed instructions.

Description

This project implements autonomous navigation software using ROS2 for the Axioma.io mobile robot platform. The system integrates SLAM (Simultaneous Localization and Mapping) for real-time map construction, AMCL (Adaptive Monte Carlo Localization) for pose estimation, and Nav2 for trajectory planning and obstacle avoidance. The robot is designed for autonomous material transport in industrial production lines.

Objectives

Design a 3D simulation environment that replicates real workspaces with static and dynamic obstacles
Equip the simulated robot with navigation sensors (LiDAR, encoders, IMU)
Implement the ROS2 ecosystem for localization (AMCL), control (differential drive), and navigation (Nav2)
Develop trajectory planning under kinematic constraints and obstacle avoidance
Integrate the software stack with the physical Axioma.io robot

Keywords

Mobile robot, autonomous navigation, industrial logistics, trajectory planning, ROS2 Humble, Gazebo Harmonic, Nav2, SLAM, differential drive, skid-steering

Features

Feature	Description
Real-time SLAM	Simultaneous mapping and localization using SLAM Toolbox in asynchronous mode
Autonomous Navigation	Full Nav2 stack with global planner (NavFn/Dijkstra) and local controller (DWB)
Obstacle Avoidance	Real-time detection and evasion using 360-degree RPLidar A1 LiDAR
Teleoperation GUI	PyQt5 graphical interface with keyboard, virtual joystick, and slider control modes
Keyboard Teleoperation	Standard teleop_twist_keyboard support for manual control during mapping
Full Visualization	RViz2 with dynamic costmaps, planned trajectories, and AMCL particle clouds
4WD Differential Robot	Robust odometry from 1000 PPR encoders with skid-steering kinematics
Gazebo Harmonic Simulation	Modern Gazebo Sim with ros_gz bridge for all sensor and actuator interfaces
Configurable Parameters	All Nav2, AMCL, SLAM, and DWB parameters tunable per application
Open Source	BSD license, free for academic, research, and commercial use

Robot Gallery

Video Demonstrations

Watch full demonstration on YouTube

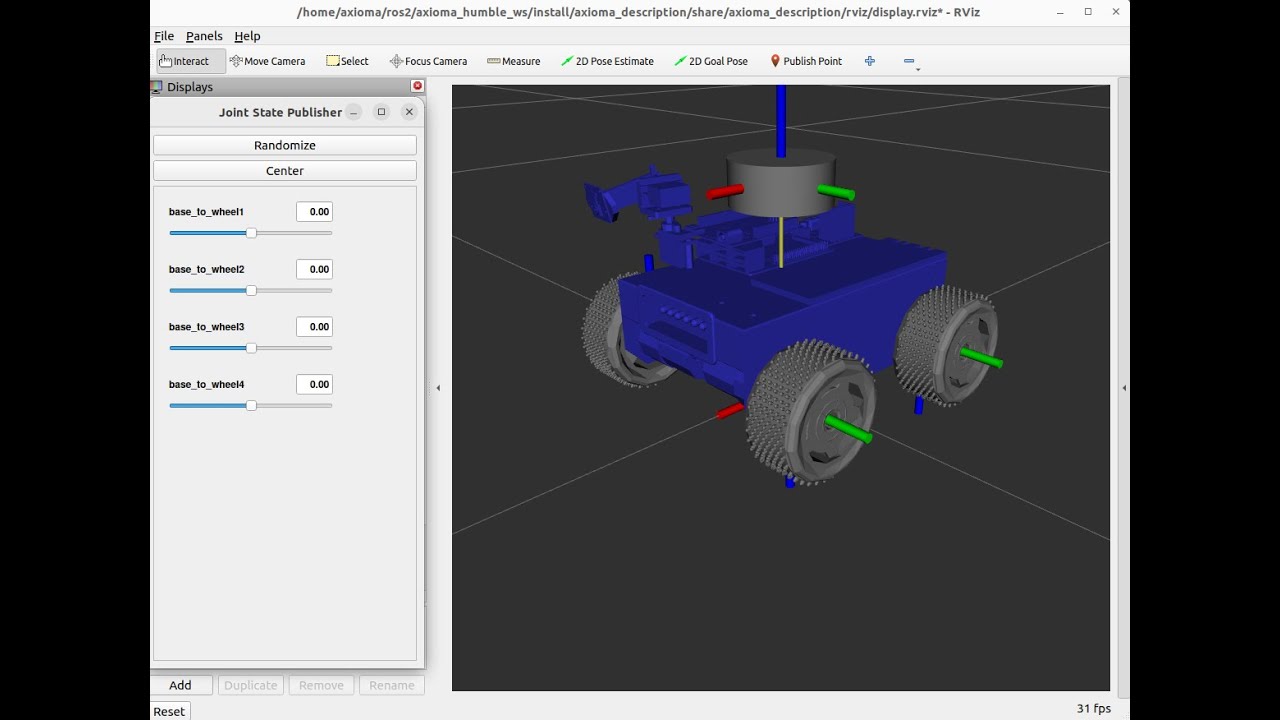

Complete walkthrough: real-time SLAM, map saving, and autonomous Nav2 navigation

Note: The videos below correspond to an earlier version built with ROS2 Foxy. The core functionality remains the same in the current Humble release with improvements in performance and stability.

Autonomous Navigation	SLAM and Mapping

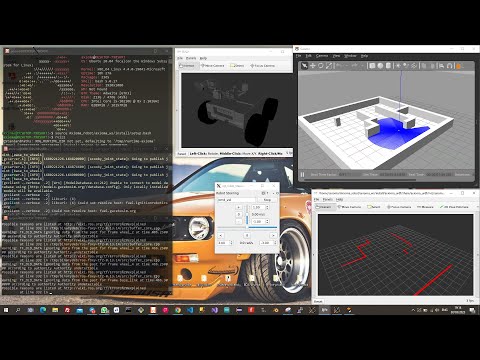

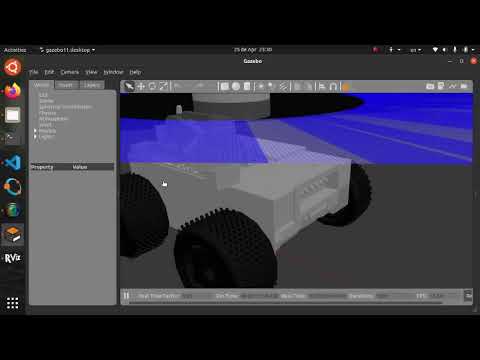

Navigation in a mapped environment	Real-time mapping with LiDAR

Sensors and TF Frames	Mechanical Assembly

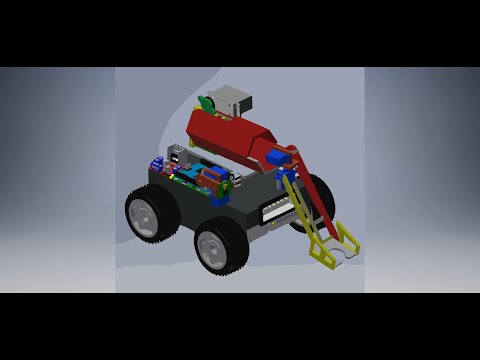

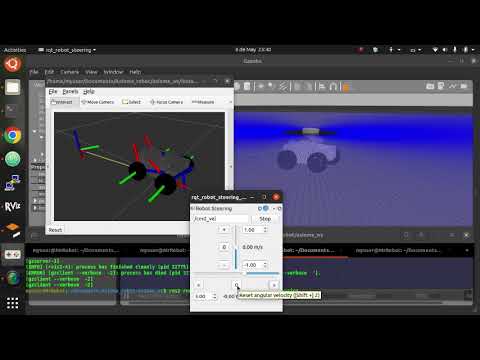

RViz visualization and odometry	CAD design in Autodesk Inventor

Mercury Robotics Competition	Teleoperation

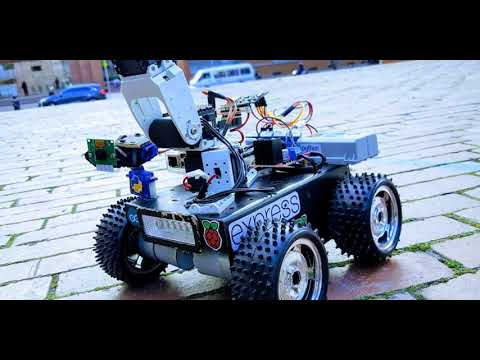

Axioma One at Mercury 2019	Teleoperation via Raspberry Pi + Flask

System Architecture

Transform Tree (TF)

Spatial transform tree: map -> odom -> base_footprint -> base_link -> sensors. The odom_to_tf node publishes the odom -> base_link transform from Gazebo odometry. AMCL publishes map -> odom to correct odometric drift during navigation.

SLAM System

SLAM Toolbox runs in asynchronous mode, building graph-based 2D occupancy grid maps in real time. It processes LiDAR scans at 5.5 Hz and odometry at 50 Hz with pose-graph optimization and loop closure detection.

Navigation System

The Nav2 stack integrates the NavFn global planner (Dijkstra), the DWB local controller (Dynamic Window Approach), dynamic costmaps with inflation and obstacle layers, and recovery behaviors (spin, backup, wait).

Mathematical Model

Complete differential 4WD skid-steering kinematic model. The diagram shows the robot geometry, control equations, Nav2 integration, and dynamic specifications.

Key Parameters

Parameter	Value
Wheel radius	$r = 0.0381$ m
Wheel separation	$W = 0.1725$ m
Total mass	$m = 5.525$ kg
Max linear velocity	$v_{max} = 0.26$ m/s
Max angular velocity	$\omega_{max} = 1.0$ rad/s
Max linear acceleration	$a_{max} = 2.5$ m/s²
Max angular acceleration	$\alpha_{max} = 3.2$ rad/s²

Differential kinematics:

$$v = \frac{r(\omega_R + \omega_L)}{2}, \quad \omega = \frac{r(\omega_R - \omega_L)}{W}$$

Requirements

Software

Operating System: Ubuntu 22.04 LTS
ROS2: Humble Hawksbill
Gazebo: Harmonic (gz-sim 8)
Python: 3.8+
CMake: 3.16+

ROS2 Dependencies

ros-humble-ros-gz              # Gazebo Harmonic integration
ros-humble-navigation2         # Full Nav2 stack
ros-humble-slam-toolbox        # SLAM mapping
ros-humble-rviz2               # Visualization
ros-humble-teleop-twist-keyboard   # Keyboard teleoperation
ros-humble-robot-state-publisher   # URDF TF publishing
ros-humble-tf2-tools           # TF debugging utilities

Recommended Hardware

CPU: Intel i5 8th Gen / AMD Ryzen 5 or higher (4+ cores)
RAM: 8 GB minimum, 16 GB recommended
Storage: 10 GB free disk space

Installation

1. Install ROS2 Humble

# Configure locale and repository
sudo apt update && sudo apt install locales curl
sudo locale-gen en_US en_US.UTF-8
sudo curl -sSL https://raw.githubusercontent.com/ros/rosdistro/master/ros.key \
  -o /usr/share/keyrings/ros-archive-keyring.gpg
echo "deb [arch=$(dpkg --print-architecture) signed-by=/usr/share/keyrings/ros-archive-keyring.gpg] \
  http://packages.ros.org/ros2/ubuntu $(. /etc/os-release && echo $UBUNTU_CODENAME) main" \
  | sudo tee /etc/apt/sources.list.d/ros2.list > /dev/null

# Install ROS2 Humble Desktop
sudo apt update && sudo apt upgrade
sudo apt install ros-humble-desktop

2. Install Gazebo Harmonic

sudo apt install gz-harmonic ros-humble-ros-gz

3. Install Project Dependencies

sudo apt install -y \
  python3-colcon-common-extensions python3-rosdep \
  ros-humble-navigation2 ros-humble-nav2-bringup \
  ros-humble-slam-toolbox ros-humble-rviz2 \
  ros-humble-teleop-twist-keyboard ros-humble-joy \
  ros-humble-robot-state-publisher ros-humble-tf2-tools

sudo rosdep init && rosdep update

4. Clone the Repository

mkdir -p ~/ros2/axioma_ws/src
cd ~/ros2/axioma_ws/src
git clone https://github.com/MrDavidAlv/Axioma_robot.git .

Build

cd ~/ros2/axioma_ws
colcon build --symlink-install
source install/setup.bash

To automatically source the workspace on every new terminal:

echo "source ~/ros2/axioma_ws/install/setup.bash" >> ~/.bashrc

Usage

SLAM (Mapping)

Launch the simulation with SLAM Toolbox and RViz:

ros2 launch axioma_bringup slam_bringup.launch.py

In a separate terminal, control the robot to explore the environment:

ros2 run teleop_twist_keyboard teleop_twist_keyboard

Or use the graphical teleoperation interface:

ros2 launch axioma_teleop_gui teleop_gui.launch.py

Save the map once the environment has been fully explored:

ros2 launch axioma_slam save_map.launch.py

Autonomous Navigation

Launch the simulation with Nav2 and RViz (requires a previously saved map):

ros2 launch axioma_bringup navigation_bringup.launch.py

In RViz2:

Use 2D Pose Estimate to set the robot initial pose
Use 2D Goal Pose to send a navigation goal
Monitor the global/local costmaps, planned paths, and AMCL particle distribution

Useful Commands

# Monitoring
ros2 node list                           # Active nodes
ros2 topic list                          # Active topics
ros2 topic hz /scan                      # LiDAR frequency
ros2 topic echo /cmd_vel                 # Velocity commands
ros2 run tf2_ros tf2_echo map base_link  # TF lookup
ros2 run tf2_tools view_frames           # TF tree diagram

# Debugging
ros2 node info /slam_toolbox
ros2 param list /controller_server
ros2 bag record -a -o navigation_data

Project Structure

Axioma_robot/
├── src/
│   ├── axioma_bringup/            # Top-level launch orchestrators
│   │   └── launch/
│   │       ├── slam_bringup.launch.py
│   │       └── navigation_bringup.launch.py
│   │
│   ├── axioma_description/        # URDF model, meshes, RViz configs
│   │   ├── urdf/
│   │   ├── meshes/
│   │   ├── rviz/
│   │   └── launch/
│   │
│   ├── axioma_gazebo/             # Gazebo Harmonic simulation
│   │   ├── axioma_gazebo/
│   │   │   └── odom_to_tf.py      # Odometry to TF broadcaster
│   │   ├── models/axioma_v2/      # SDF model with meshes
│   │   ├── worlds/                # Simulation worlds
│   │   └── launch/
│   │       └── simulation.launch.py
│   │
│   ├── axioma_slam/               # SLAM Toolbox configuration
│   │   ├── config/
│   │   │   └── slam_params.yaml
│   │   ├── rviz/
│   │   └── launch/
│   │       ├── slam.launch.py
│   │       └── save_map.launch.py
│   │
│   ├── axioma_navigation/         # Nav2 configuration and maps
│   │   ├── config/
│   │   │   └── nav2_params.yaml
│   │   ├── maps/
│   │   ├── rviz/
│   │   └── launch/
│   │       └── navigation.launch.py
│   │
│   └── axioma_teleop_gui/         # PyQt5 teleoperation interface
│       ├── axioma_teleop_gui/
│       │   ├── main.py
│       │   ├── main_window.py
│       │   ├── ros_node.py
│       │   └── widgets/
│       │       ├── keyboard_mode.py
│       │       ├── joystick_mode.py
│       │       └── slider_mode.py
│       └── launch/
│           └── teleop_gui.launch.py
│
├── documentacion/
│   └── modelo-matematico/         # Kinematic and control documentation
│
├── images/                        # Documentation images
└── README.md

Physical Parameters

Parameter	Value	Source
Total mass	5.525 kg	SDF model
Dimensions (L x W x H)	0.1356 x 0.1725 x 0.1 m	Geometry
Wheel radius	0.0381 m	model.sdf
Friction coefficient	1.0 (wheels), 0.0 (caster)	SDF
Max torque	20 N*m per wheel	model.sdf
LiDAR (RPLidar A1)	360 samples, 360 deg, 0.15-12 m, 5.5 Hz	SDF

Contact

Author: Mario David Alvarez Vallejo Repository: github.com/MrDavidAlv/Axioma_robot License: BSD -- Free for academic and research use
