cesium-vector-tileset

English | 简体中文

Render vector tiles in Cesium using MapLibre-style JSON. The library reuses MapLibre GL JS code and designs for style expressions, tile processing, and label layout, then renders through Cesium's Buffer*Collection and Primitive APIs.

Use the library with an existing Cesium scene. It is framework independent and provides TypeScript declarations.

Live demo

Gallery

Click a screenshot to explore the same scene in the live demo.

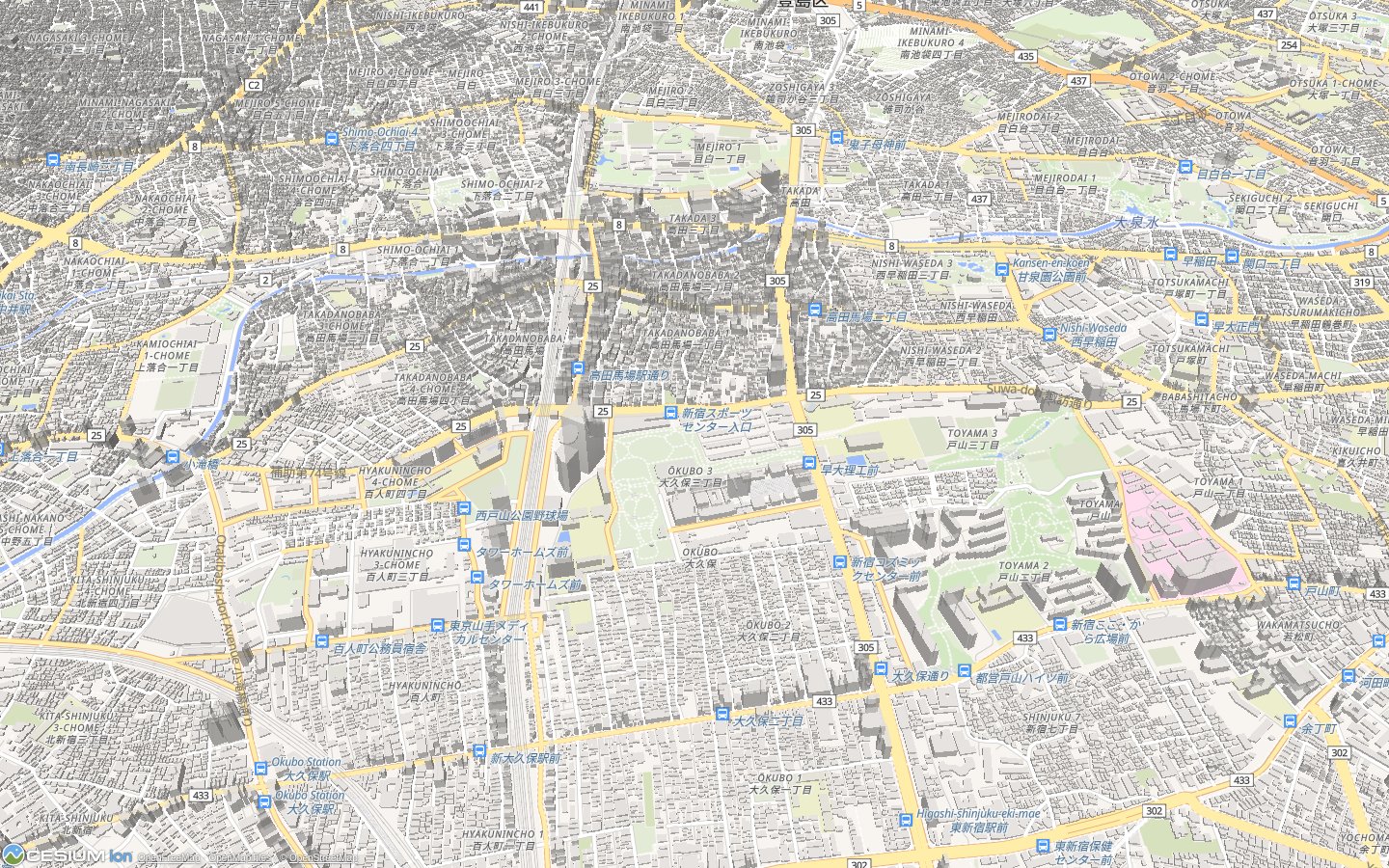

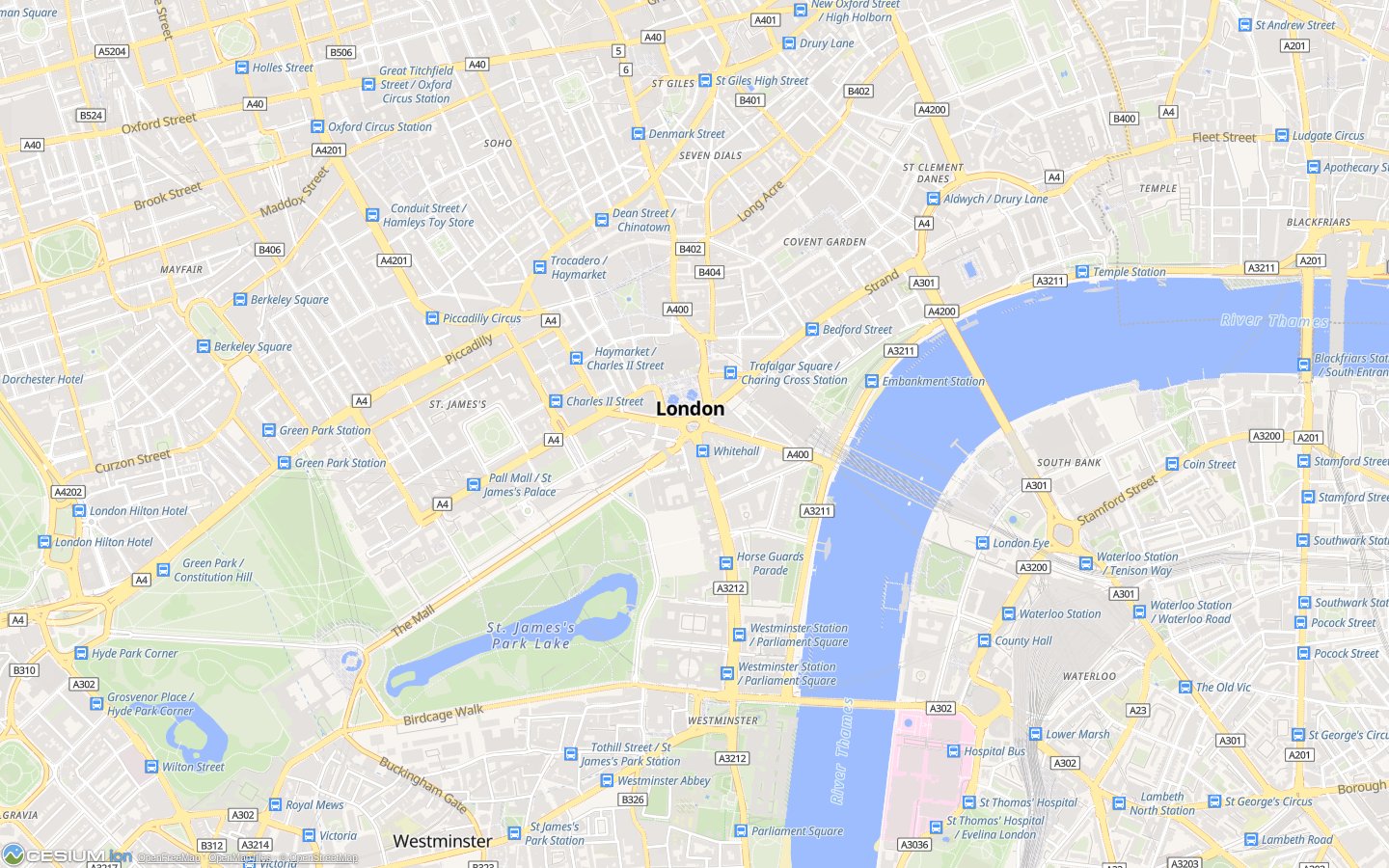

London · 2D roads and labels	Tokyo · 3D city map

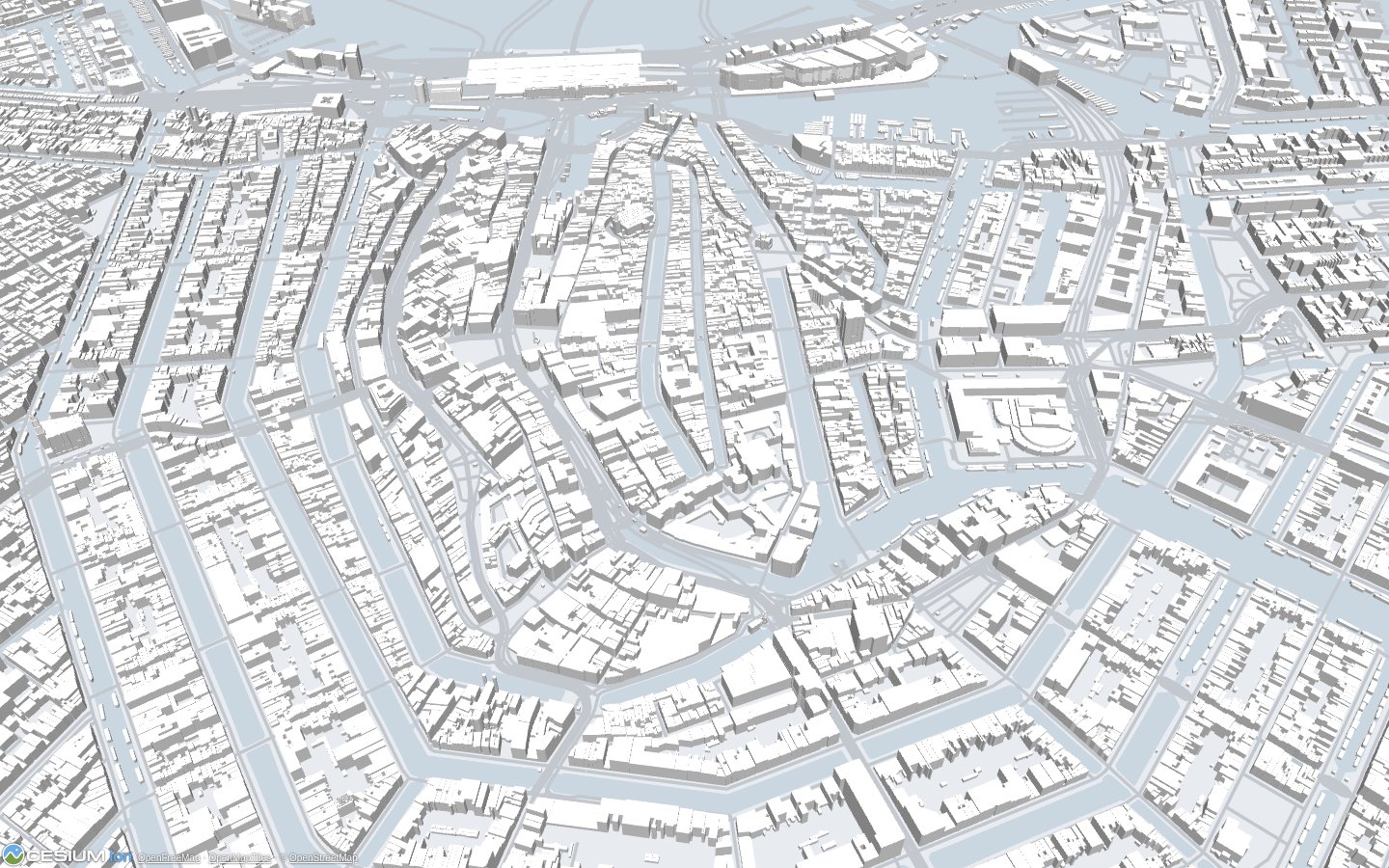

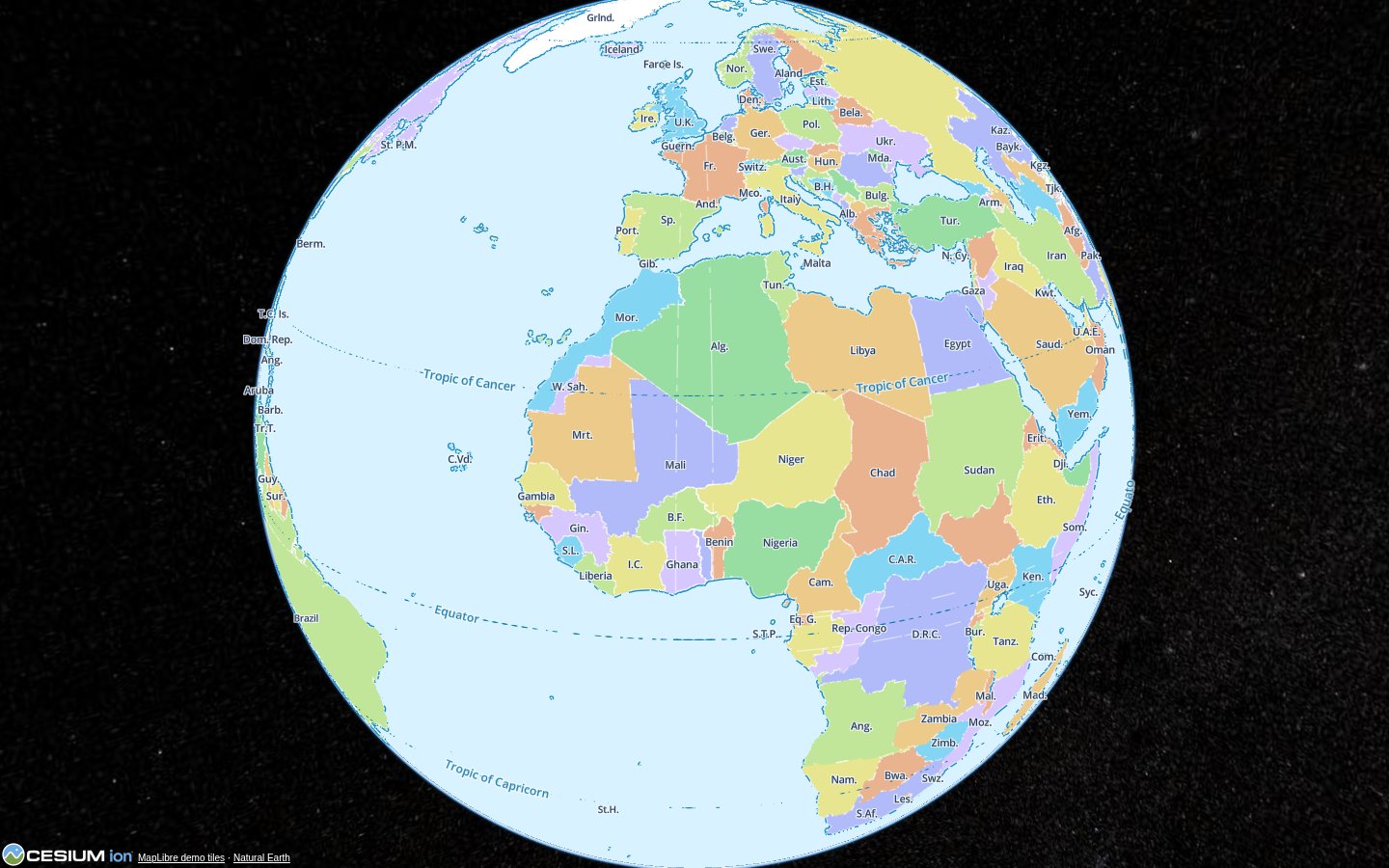

Amsterdam · Extruded buildings	World · Globe view

City maps: OpenFreeMap / OpenMapTiles / © OpenStreetMap. World map: MapLibre demo tiles / Natural Earth.

Capabilities

Area	Current implementation
Vector data	Mapbox Vector Tiles (MVT), MapLibre Tiles (MLT), and GeoJSON
Other sources	Raster tiles, images, video, and canvas
Style layers	background, fill, line, circle, fill-extrusion, symbol, and raster
Styling	MapLibre style expressions and filters, data-driven paint, dashed lines, and image patterns
Labels	Text and icons, glyph/sprite loading, collision placement, and local CJK glyph generation
Cesium integration	3D, 2D, Columbus View, scene mode transitions, and feature picking for supported primitives
Tile lifecycle	Worker processing, camera-based tile selection, parent/child fallback, caching, and GPU resource retirement

This is a Cesium rendering backend with a subset of MapLibre's capabilities. See compatibility and limits before choosing a style.

Installation

pnpm add cesium cesium-vector-tileset

Configure Cesium's static assets in your application.

Use with Cesium

The following examples assume your application already owns a Cesium Scene and a render loop.

Load a style URL

Serve your version 8 style JSON at /styles/map.json, or replace the URL with your provider's style URL:

import type { Scene } from 'cesium';
import { CesiumVectorTileset } from 'cesium-vector-tileset';

export async function addVectorMap(scene: Scene) {
  const tileset = await CesiumVectorTileset.fromUrl('/styles/map.json');

  tileset.errorEvent.addEventListener((error) => {
    console.error('Vector map error:', error);
  });

  try {
    await tileset.whenReady();
    scene.primitives.add(tileset);
    scene.requestRender();
    return tileset;
  }
  catch (error) {
    tileset.destroy();
    throw error;
  }
}

fromUrl() fetches the style and creates the tileset. whenReady() waits for style initialization; it does not wait for viewport tiles to render. Once the tileset is in the scene, tilesLoaded reports whether current source data, geometry uploads, and pending symbol work have finished. The value can change as the camera moves.

Cesium supplies the camera, projection, and rendering context through the primitive's update(frameState) callback. The tileset requests further frames through frameState.afterRender, including asynchronous loading under requestRenderMode; no scene or render callback option is needed.

Use an inline style

An inline GeoJSON source is useful for trying the API without a tile server:

import type { Scene } from 'cesium';
import { CesiumVectorTileset } from 'cesium-vector-tileset';

export async function addPoint(scene: Scene) {
  const tileset = new CesiumVectorTileset({
    style: {
      version: 8,
      sources: {
        places: {
          type: 'geojson',
          data: {
            type: 'Feature',
            properties: { name: 'Shanghai' },
            geometry: { type: 'Point', coordinates: [121.454, 31.258] },
          },
        },
      },
      layers: [{
        id: 'places',
        type: 'circle',
        source: 'places',
        paint: { 'circle-radius': 8, 'circle-color': '#38bdf8' },
      }],
    },
  });

  try {
    await tileset.whenReady();
    scene.primitives.add(tileset);
    scene.requestRender();
    return tileset;
  }
  catch (error) {
    tileset.destroy();
    throw error;
  }
}

Move your camera to Shanghai to see the point. For vector tile sources, each layer also needs a source-layer matching a layer name inside the tile data.

Options and lifecycle

Option	Purpose
style	Version 8 style object; required by the constructor
transformRequest	Transform style, source, tile, sprite, and glyph requests, including URLs and headers
zoomLevelsToOverscale	Levels to reparse above a vector source's maximum zoom; defaults to 4
localIdeographFontFamily	Local CJK font family; defaults to sans-serif; false uses server glyphs
heightReference	Fill polygon draping; defaults to Cesium's HeightReference.NONE
signal	fromUrl() only: cancels the style request before tileset creation

Use setStyle(nextStyle) to apply a new style object. Unchanged sources retain their tile caches. Register or replace RGBA images with addImage() / updateImage() and remove them with removeImage().

pick(pickObject) resolves a supported primitive's pick ID to { layerId, properties }. stats() exposes tile, collection, memory, and submitted-command counters. setGpuMemoryBudgetBytes(bytes) adjusts the GPU cache budget; active tiles are retained, so this is not a hard memory cap. Types and method signatures are available through the public entry point and tileset implementation.

When disposing a map, remove it from the scene and release it if the owning collection has not already done so:

import type { Scene } from 'cesium';
import type { CesiumVectorTileset } from 'cesium-vector-tileset';

export function removeVectorMap(scene: Scene, tileset: CesiumVectorTileset) {
  scene.primitives.remove(tileset);
  if (!tileset.isDestroyed()) {
    tileset.destroy();
  }
  scene.requestRender();
}

Compatibility and limits

• Tested with Cesium 1.146.0.
• Supported layer and source types are listed above. heatmap, hillshade, and raster-dem are not implemented. line-gradient is explicitly rejected by style validation.
• Draping applies only to ordinary fill polygons and requires the hosting scene's vector provider. Lines, circles, symbols, extrusions, and image patterns retain ellipsoid heights.
• Text and icons render, but symbol picking is currently disabled.
• fromUrl() resolves relative source TileJSON URLs, tile templates, sprites, and glyph URLs against the style URL. Use absolute URLs for GeoJSON data, image url, and video urls when they are remote resources.
• Browser rendering requires WebGL and module Workers. Deploy Cesium's static assets, including its complete Workers directory, along with the library's worker and shared chunks. The demo handles Cesium assets with unplugin-cesium; see vite.config.ts.
• The library is framework independent; Vue is used by the demo. Importing the package in Node does not provide server-side map rendering.

License and credits

The project is licensed under the MIT License. Its implementation adapts code and designs from MapLibre GL JS and uses Cesium for rendering. Third-party dependencies and map data retain their respective licenses and attribution requirements.
