Keep clipped features within their true map coordinates

[paulstothard]

Proposed PR: Keep clipped features within their true map coordinates

Target: sciguy/cgview-js:main
Source: paulstothard/cgview-js:fix/wrapped-feature-clipping

Summary

Intersect feature ranges with an expanded visible range before drawing them. This prevents a feature from being extended past its biological coordinates when the visible range wraps the map origin, and prevents a directional arrowhead from being placed at an artificial clipping boundary.

Why

Feature.drawRange() currently replaces a feature endpoint that is outside the visible range with visibleRange.start - 100 or visibleRange.stop + 100. That shortcut works for many ordinary views, but a wrapped visible range has two disjoint linear coordinate intervals. Treating it as one interval can extend a feature beyond its actual start or stop.

The visible symptom is most obvious after panning an off-center circular map across the origin: a preceding feature can be painted past its true endpoint and overpaint an adjacent feature. The adjacent feature has not changed its legend category or color; it is being covered by incorrect geometry from the earlier feature.

Reproduction on main:

1. Create a circular map with adjacent features near the origin (for example, a blue feature at 12–104 bp and an orange feature at 112–178 bp on a 360 bp map).
2. Zoom until the visible range crosses 360/1.
3. Pan the map off center while keeping the origin-crossing range visible.
4. The blue feature can extend beyond 104 bp and overpaint much of the orange feature.

Implementation

• Split wrapped map ranges into one or two non-wrapping coordinate segments.
• Expand the visible segments by the existing 100 bp drawing margin, bounded to the sequence.
• Intersect those segments with the real feature segments.
• Merge only overlapping or adjacent intersections.
• Retain a clockwise arrow only on the segment containing the feature's true stop, and a counterclockwise arrow only on the segment containing its true start.
• Keep an allocation-light constant-time path for the common case where both feature and visible range are non-wrapping.

Scope and non-goals

• No CGView JSON, public setting, feature coordinate, legend, or track changes.
• No change to the existing 100 bp offscreen drawing margin.
• No change to feature ordering or colors.
• No attempt to redesign feature decorations; the change only ensures clipping boundaries are rendered as arcs rather than false arrowheads.

Compatibility and Proksee integration

• Existing CGView JSON files are unaffected.
• The fix is internal to feature drawing and requires no Proksee data-model, API, or server-side change.
• Feature coordinates, records, tracks, legend items, and event behavior are unchanged.
• Canvas and SVG export share the same corrected segment calculation.

Tests

Automated:

• npx jest test/Feature.test.js --runInBand — 19/19 passed.
• npx jest --runInBand — 77/77 passed across 10 suites.
• npm run gh-pages — production/test-page build succeeded (existing Rollup warnings only).

Regression coverage includes:

• wrapped visible ranges;
• ordinary non-wrapped visible ranges;
• direct- and reverse-strand arrow placement;
• clipped and unclipped features;
• features outside the visible range plus margin;
• origin-spanning features in full-map linear layout.

Manual browser verification:

• circular Canvas rendering before and after off-center panning;
• linear Canvas rendering, including an origin-spanning feature;
• circular SVG export;
• linear SVG export.

Prepared evidence files:

• user-reproduction-before-pan-correct.png
• user-reproduction-after-pan-overpaint.png

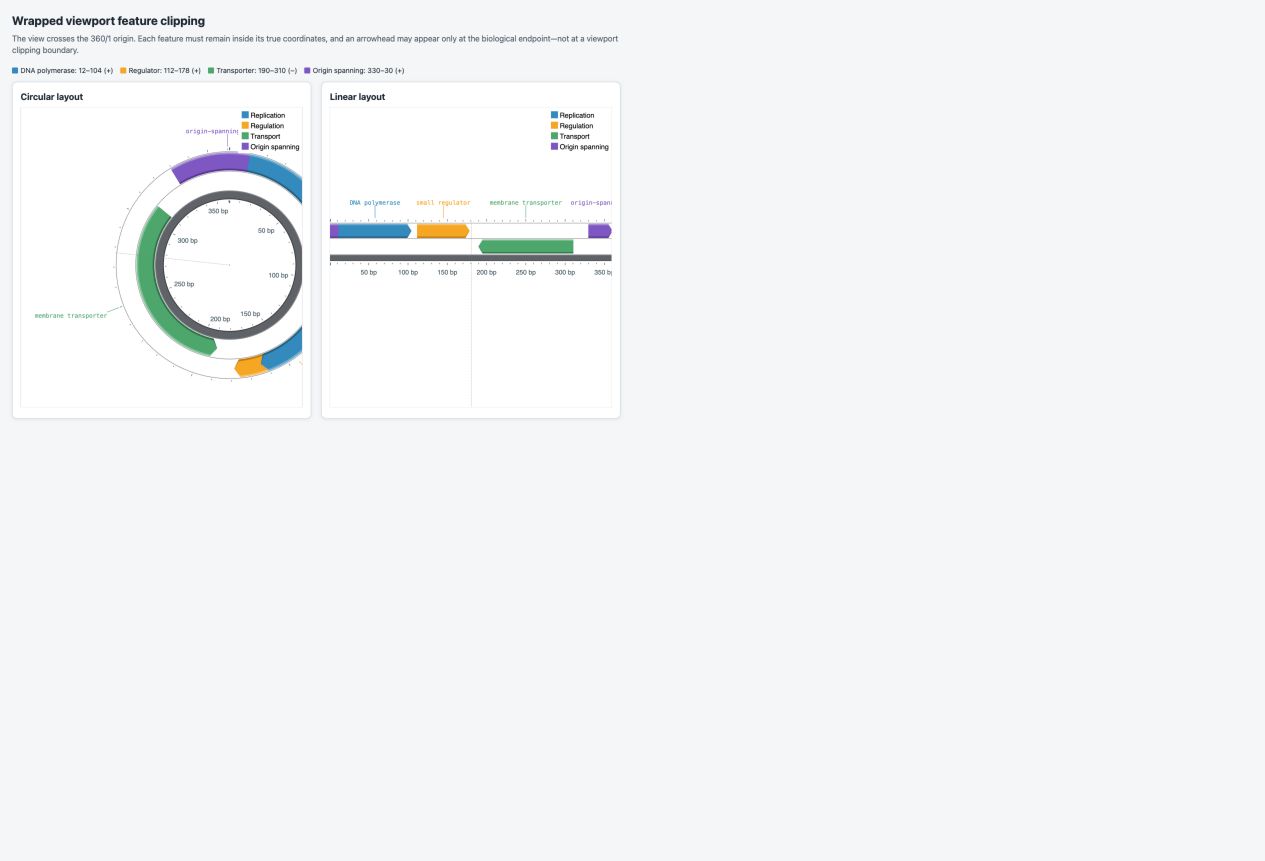

• circular-panned-upstream.png

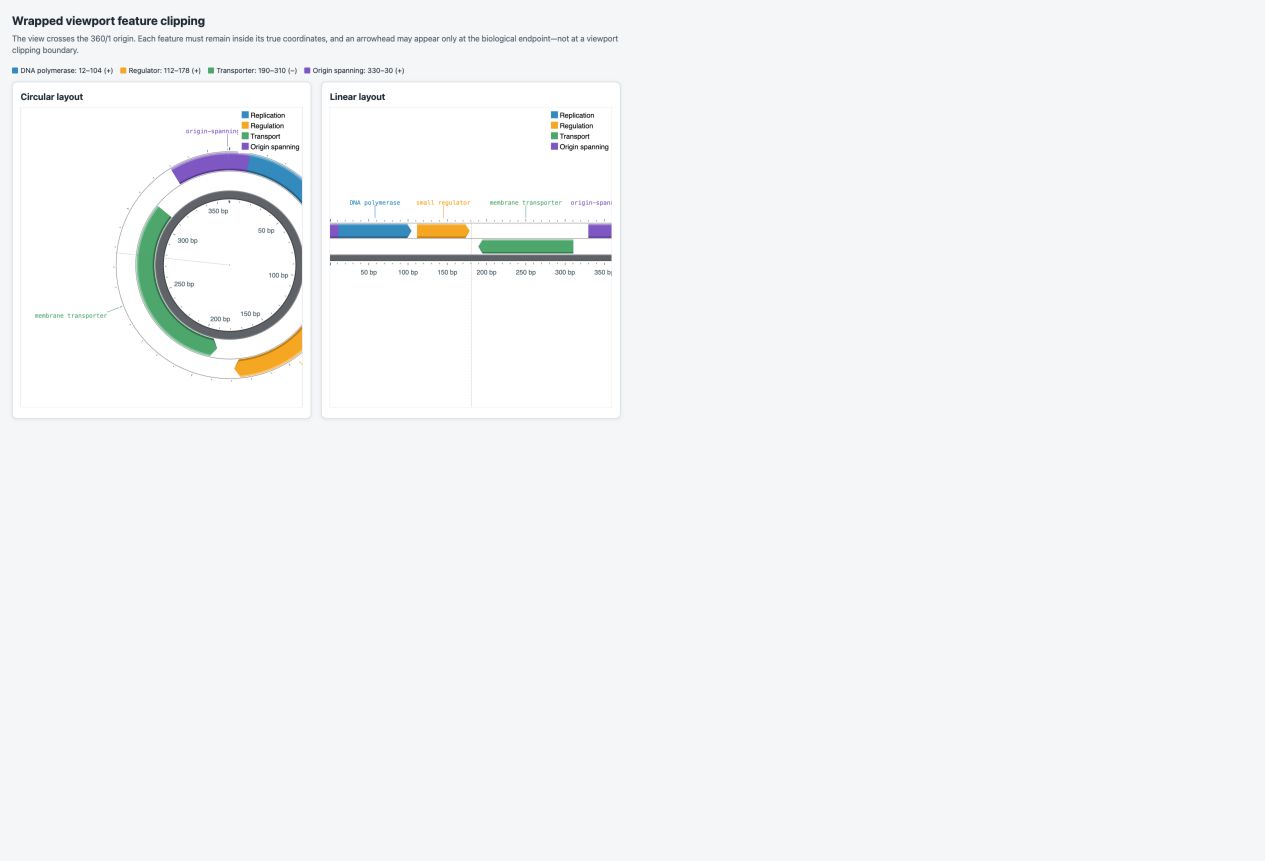

• circular-panned-fixed.png

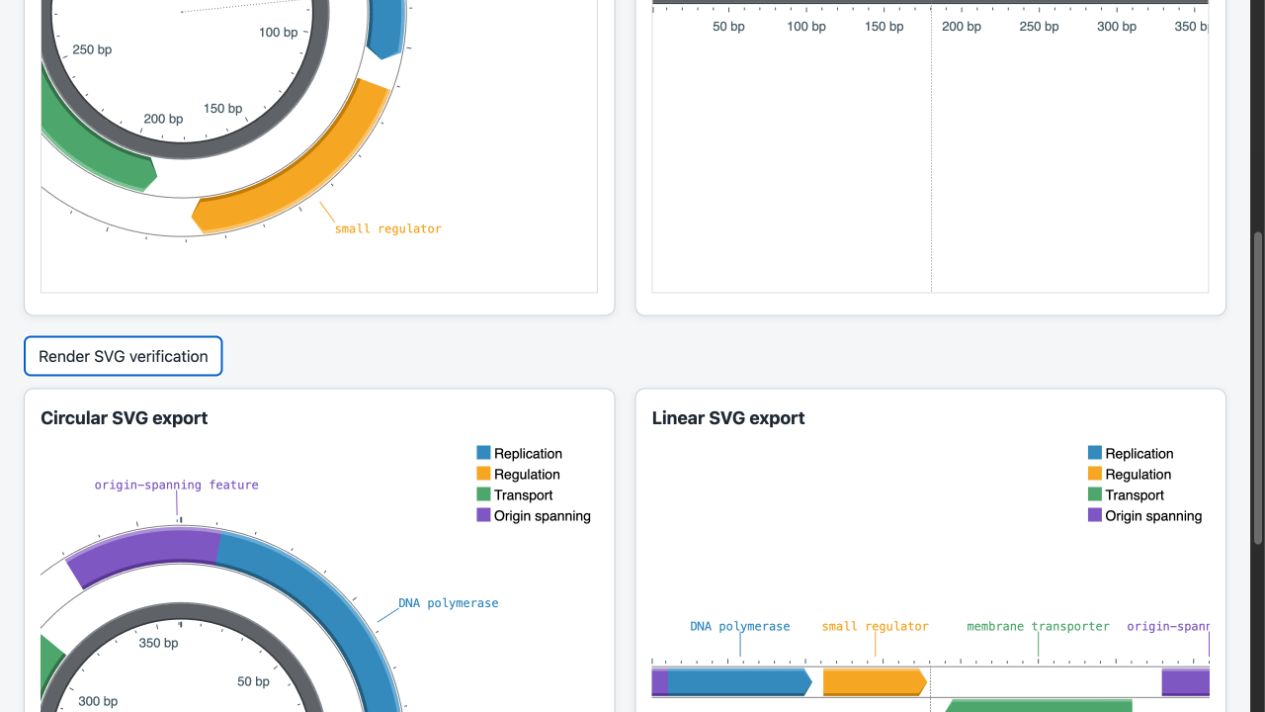

• canvas-circular-linear-fixed.png

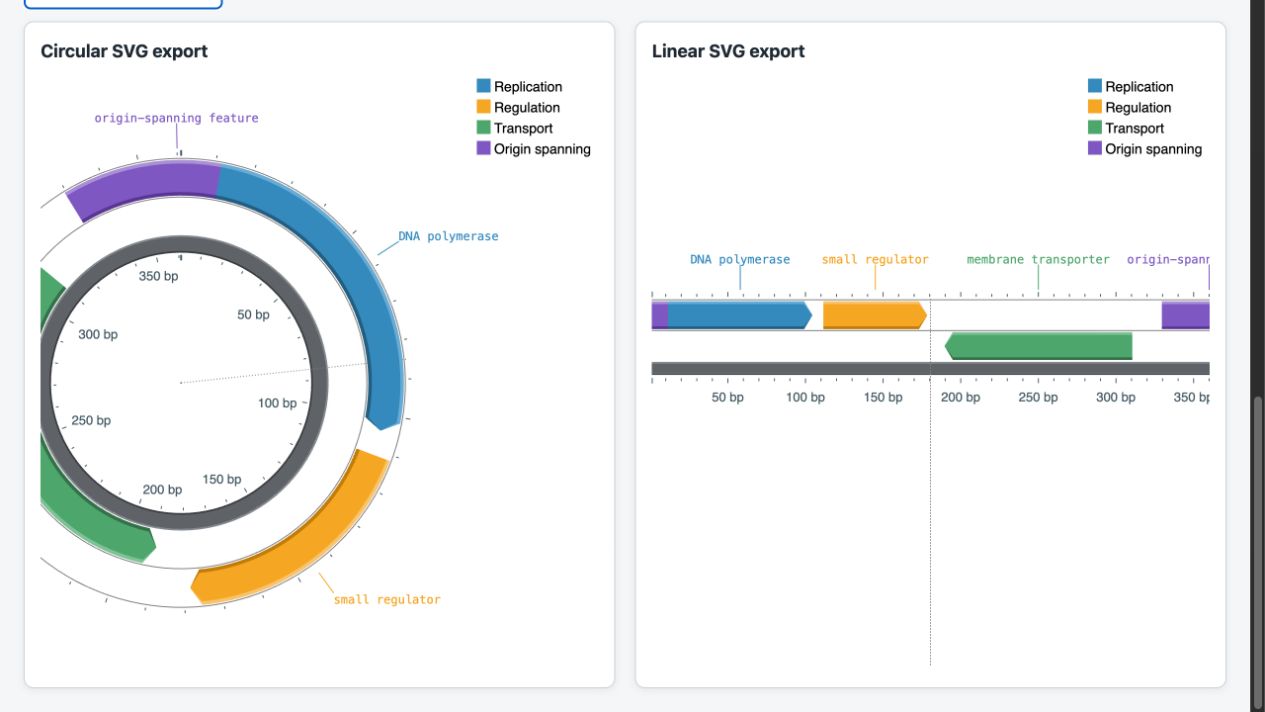

• svg-circular-linear-fixed.png
• index.html (standalone comparison/verification harness)

Browser evidence

Upstream main, after wrapped/off-center pan	Fixed branch, same scenario

Fixed Canvas: circular and linear	Fixed SVG export: circular and linear

Performance considerations

The common non-wrapping case uses a direct constant-time intersection and does not run the wrapped-range splitting/merging logic. Wrapped ranges contain at most two feature segments and two visible segments, so the fallback has a fixed upper bound of four intersections. The change does not scan sequence bases or materialize feature data.

Risk assessment

Moderate but bounded. This replaces complicated clipping logic in a hot drawing method, so the main risks are origin wrapping, arrow placement, and linear/circular parity. Those cases have focused unit coverage and were verified in both Canvas and SVG output. No serialized or public API surface changes.

Suggested reviewer checklist

• Reproduce the adjacent-feature overpaint on main using a wrapped visible range.
• Confirm the preceding feature stops at its true coordinate after this change.
• Confirm direct and reverse arrowheads appear only at biological endpoints.
• Confirm circular and linear layouts render origin-spanning features correctly.
• Confirm SVG export matches Canvas geometry.
• Confirm ordinary non-wrapped maps retain expected feature appearance and performance.
