WEAVY: Artistic Intelligence

WEAVY is a state-of-the-art Multimodal AI orchestrator that transforms complex media pipelines into high-performance execution graphs. Powered by advanced Graph Algorithms for cycle-free integrity and Topological Sorting (Kahn's Algorithm) to manage a dynamic Ready Queue, WEAVY pipelines parallelized LLM and FFmpeg tasks with surgical engineering precision.

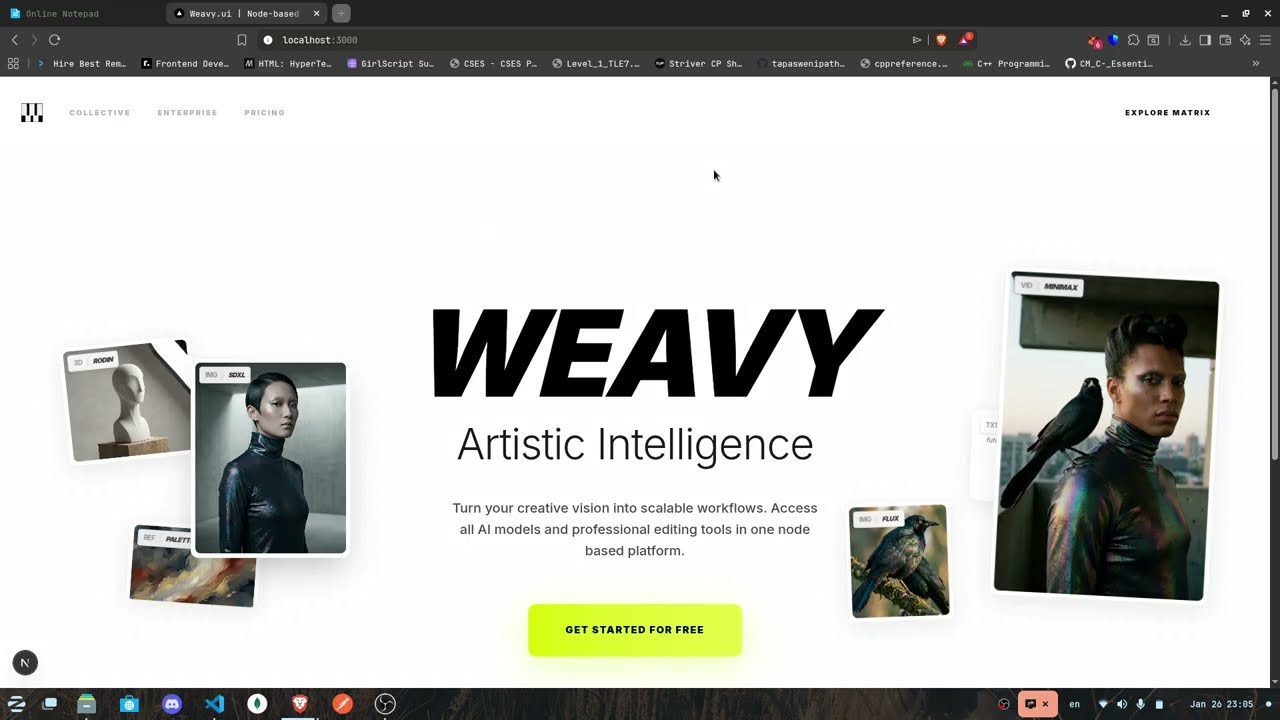

🎥 Demo

---

Technical Architecture & Implementation

WEAVY is built on a "Thin Client, Heavy Worker" architecture. The frontend manages the UI state and topological scheduling, while Trigger.dev handles long-running compute-intensive tasks (LLM inference and FFmpeg processing).

The Brain: Topological Execution Engine

Located in src/hooks/useGraphExecution.ts, the engine implements Kahn's Algorithm to ensure data integrity:

1. Strict Validation: Before execution, it verifies that all "Input" nodes (Text, Image, Video) are in a "Ready" state (locked or uploaded).
2. Parallel Batching: Nodes are grouped by dependency layers. All independent nodes in a layer are triggered concurrently using Promise.all.
3. Data Propagation: Outputs from parent nodes are dynamically injected into the payloads of child nodes via handle mapping.

Infrastructure: Trigger.dev v3 & Cloud Media

• Background Jobs: Every compute-heavy node (Crop, Extract Frame, LLM) runs as a Trigger.dev task. This prevents Vercel timeout limits and provides robust retry logic.
• FFmpeg Excellence: We use the native Trigger.dev FFmpeg extension for precise image cropping and frame extraction, ensuring consistent results in a serverless environment.
• Transloadit CDN: Processed assets are uploaded via Transloadit sub-tasks, providing a high-availability CDN for immediate frontend preview.

---

Architecture in Action: Product Marketing Kit Case Study

To understand how WEAVY handles complex dependencies, let's look at the Product Marketing Kit Generator workflow:

The Multi-Branch Pipeline

1. Branch A (Visual Identity):
   • Step 1: User uploads a product photo (Image Node).
   • Step 2: The Crop Node triggers an FFmpeg mission to focus on the product.
   • Step 3: LLM Node #1 receives the cropped photo + text details to generate a technical description.
2. Branch B (Motion Capture):
   • Step 1: User uploads a demo video (Video Node).
   • Step 2: The Frame Node extracts a high-quality "hero frame" from 50% into the video.
3. The Convergence (Final Synthesis):
   • LLM Node #2 acts as the "Social Media Manager". It waits for both Branch A and Branch B to complete.
   • Inputs: It aggregates the description from LLM #1, the cropped photo from Branch A, and the hero frame from Branch B.
   • Output: A visually-aware, context-rich marketing post.

Execution Timeline

Phase	Branch A (Parallel)	Branch B (Parallel)	Convergence
Phase 1	Upload Image + Text	Upload Video	(Idle)
Phase 2	Crop Image Task	Extract Frame Task	(Idle)
Phase 3	LLM Node #1 (Description)	(Complete)	(Idle)
Phase 4	(Complete)	(Complete)	LLM Node #2 (Final Post)

Note

Branch A and B run simultaneously. The Kahn's Algorithm engine ensures the "Social Media Manager" node only fires once every upstream dependency is resolved.

---

Advanced Features & Capabilities

Specialized Node Ecosystem

Every node in WEAVY is a precision-engineered micro-service. When connected, manual inputs are automatically disabled, and data flows through high-speed cloud triggers.

Node	Input Handles	Output Handles	"Behind the Scenes" Logic
Text	(None)	text_output	Simple string buffer for system prompts or static manual data.
Upload Image	(Manual File)	image_url	Uses Transloadit SDK to upload and provide a high-speed CDN URL.
Upload Video	(Manual File)	video_url	Secure cloud upload for large media files with instant player preview.
Crop Image	image_url, x, y, w, h	output (Cropped)	Trigger.dev machine runs FFmpeg complexFilter with crop parameters.
Extract Frame	video_url, timestamp	output (Frame)	FFmpeg fast-seeking (-ss) extracts a high-quality JPEG at the exact millisecond.
LLM Generate	system, user, images	output (Text)	Orchestrates Google Gemini 3 Flash with multimodal vision context.

Pro-Grade Canvas Controls

• Drag & Drop Workflow: Add nodes by dragging them from the tactical sidebar onto the blueprint grid.
• Smart Interaction Modes:
  • Select Mode (V): Standard box selection for grouping and moving nodes.
  • Hand/Pan Mode (H): Effortless navigation across expansive, multi-branch graphs.
• Precision Zooming: Choose from 25% to 200% zoom levels or use Fit View to instantly re-center your entire workspace.
• Infinite Undo/Redo: Full state persistence using Zundo, giving you the freedom to experiment without risk.

Data Portability: JSON Snapshots

• Export Selected: Highlights specific nodes and saves their internal state, position, and connections into a serialized JSON bundle.
• Dynamic Import: Import any WEAVY JSON. The engine automatically handles ID re-mapping and position offseting to merge external workflows into your current session.

Strategic Audit Log (Right Sidebar)

WEAVY maintains a surgical record of every execution for transparency and debugging. Clicking a run in the history panel reveals the In-Depth Execution Trace:

• Visual Node Map: A mini-representation of which nodes were part of the specific run.
• Granular Timing: See exactly how many seconds each node took to execute (e.g., "Crop Task: 1.82s").
• Handoff Inspection:
  • Inbound Data: View the exact JSON/URL payload a node received from its parents.
  • Outbound Data: Inspect the resulting URLs or AI text generated, with direct links to "Open Asset Source".
• Status Badges: Color-coded badges (Emerald ✅ for success, Red ❌ for failure, Amber ⏳ for running) provide instant pulse checks on pipeline health.

---

Project Structure & Route Logic

Key Routes

• /: Marketing landing page with high-impact GSAP animations and Clerk authentication entry points.
• /canvas: The core workflow builder. Protected by Clerk middleware.
• /api/trigger/[task]: API routes that bridge the frontend to Trigger.dev tasks.
• /api/history/: Endpoints for persisting and retrieving the audit log from Supabase.

Directory Breakdown

• src/hooks/: Contains useGraphExecution.ts (the core scheduler) and useStore.ts (Zustand state management).
• src/components/workflow/nodes/: Implementation of the 6 specialized node types. Uses NodeWrapper.tsx for consistent status tracking and UI styling.
• src/trigger/: The serverless logic for Image Cropping, Frame Extraction, and Gemini LLM orchestration.
• src/lib/: Unified utility functions for DAG cycle detection (dagUtils.ts) and type-safe connection validation (validationUtils.ts).
• scripts/: Internal utilities like Gemimi model listing (list-gemini-models.js).

---

UI & Aesthetics

WEAVY features a premium, tactical aesthetic:

• Interaction: Custom drag-and-drop system, smooth pan/zoom, and a persistent MiniMap.
• Feedback: Pulsating glow effects during node execution and real-time status badges (Running, Completed, Error).
• Libraries Used:
  • React Flow: Workflow canvas engine.
  • Framer Motion: Micro-interactions and layout transitions.
  • GSAP: High-performance marketing animations.
  • Radix UI: Accessible primitives for dropdowns, dialogs, and tooltips.
  • Lucide React: Tactical icon system.
  • Sonner: Premium toast notifications.

---

Environment Variables (.env.example)

To run this project, you will need to add the following variables to your .env file:

# AI API Keys
GEMINI_API_KEY=your_gemini_api_key_here

# Trigger.dev Keys
TRIGGER_SECRET_KEY=your_trigger_secret_key_here
TRIGGER_PROJECT_REF=your_project_ref_here
TRIGGER_API_URL=https://api.trigger.dev

# Transloadit Keys (Media Processing)
TRANSLOADIT_KEY=your_transloadit_key_here
TRANSLOADIT_SECRET=your_transloadit_secret_here
TEMPLATE_ID=your_template_id_here

# Clerk Auth Keys
NEXT_PUBLIC_CLERK_PUBLISHABLE_KEY=your_clerk_publishable_key_here
CLERK_SECRET_KEY=your_clerk_secret_key_here

# Supabase Keys
SUPABASE_SERVICE_ROLE_KEY=your_supabase_service_role_key_here

# Database URL (Prisma)
DATABASE_URL="postgres://user:password@host:6543/postgres?pgbouncer=true"

---

Troubleshooting Guide

Issue	Potential Cause	Resolution
Nodes Not Executing	Trigger.dev worker not running locally.	Run npx trigger.dev@latest dev in a separate terminal.
Database Connection Failure	IP not whitelisted in Supabase.	Add 0.0.0.0/0 to your Supabase allowed IP ranges.
FFmpeg Errors	Missing extension in trigger.config.ts.	Ensure the ffmpeg() extension is included in the build config.
Clerk Redirect Loops	Misconfigured middleware.ts.	Ensure NEXT_PUBLIC_CLERK_SIGN_IN_URL is set correctly in .env.

---

Contributing Guide

1. Feature Requests: Open an issue describing the new Node type or UI improvement you'd like to see.
2. Branching: Create a feature branch (git checkout -b feature/amazing-feature).
3. Coding Standards: Ensure all new components use the NodeWrapper and follow the tactical military-industrialism design system.
4. Testing: Run a full graph execution on the "Product Marketing Kit" sample before submitting a PR.

---
