Wrapped sidebar todos overlap and consume the next section gap #57529

Activity

1. opencode-agent commented on Oct 20, 2026



   opencode-agentBot

   on Oct 20, 2026 – with OpenCode Agent

   Contributor

   More actions

   Thanks for the detailed report. I reproduced this on 2.1.1, and the same script shows it on the latest dev (3fdb13bc).

   Steps:

   • Turn on experimental.todo. Have the model write four long todos that wrap in the 42-column sidebar.
   • Add a local TUI plugin that appends a section after Todo in sidebar.content. The section is a box that can grow and shrink (flexGrow={1} minHeight={0}) with a header, a "search…" line and a scroll box of 67 rows, similar to your "Sessions (67)" example.

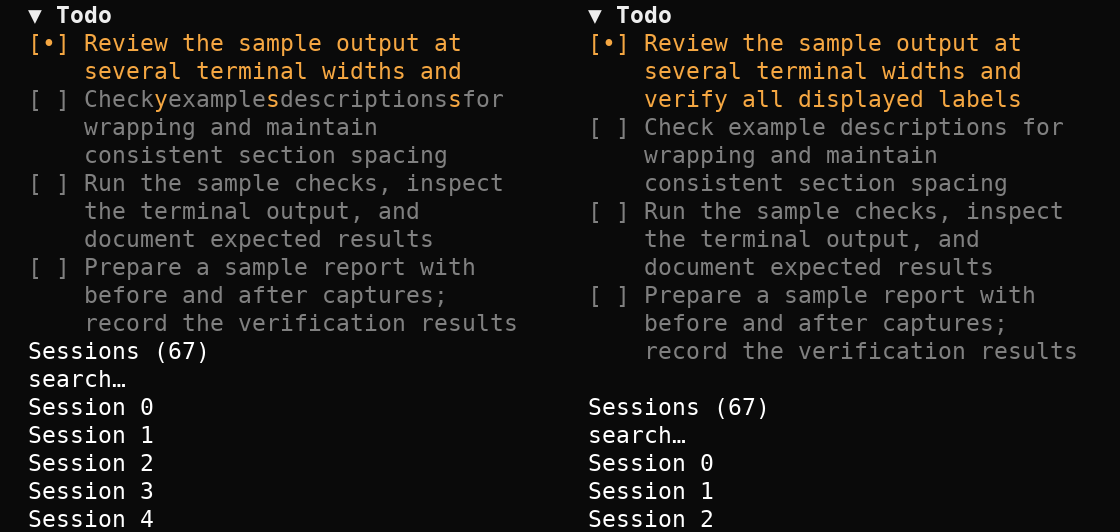

   The Todo section then shrinks below the height of its wrapped text. The first todo loses its last line, stray letters land inside the next todo ("Addrintegrationetestsrcovering"), the next section's header is drawn over "search…", and the blank row before it disappears. The screenshot and recording below show this, and the script below reproduces it.

   In my runs it only happened when the following section could shrink. With a plain long list after Todo, or with only the built-in sections, the todos wrapped correctly and the blank row was kept. Your proposed fix is in #57530.

   recording.mp4



   Reproduction script (drive.ts)

   // Repro for anomalyco/opencode#57529: wrapped sidebar todos overlap.
   import { Effect } from "effect"
   import { Llm, OpenCodeDriver } from "opencode-drive"

   const todos = [
     { content: "Refactor the authentication middleware so that tokens are refreshed before expiry", status: "completed" },
     { content: "Add integration tests covering the new session restore flow across reconnects", status: "in_progress" },
     { content: "Update the configuration documentation to describe every new sidebar option", status: "pending" },
     { content: "Audit the error handling in the provider adapters for consistent retry behaviour", status: "pending" },
   ]

   // A synthetic sidebar section placed after Todo: a flexible section with a long, scrollable list
   // (like a session list plugin). With it, the native Todo section shrinks below its wrapped text.
   const followingPlugin = `/** @jsxImportSource @opentui/solid */
   import { Plugin } from "@opencode/plugin/tui"
   export default Plugin.define({
     id: "repro.following",
     setup(context) {
       context.ui.slot({
         append: "sidebar.content",
         render: () => (
           <box flexGrow={1} minHeight={0}>
             <text fg={context.theme.text.base}><b>Sessions (67)</b></text>
             <text fg={context.theme.text.muted}>search…</text>
             <scrollbox flexGrow={1} minHeight={0}>
               {Array.from({ length: 67 }, (_, i) => <text fg={context.theme.text.muted}>Session {i}</text>)}
             </scrollbox>
           </box>
         ),
       })
     },
   })
   `

   export default OpenCodeDriver.use(
     {
       project: { files: { ".opencode/plugins/following/tui.tsx": followingPlugin } },
       ...(process.env.OC_DEV ? { opencode: { dev: process.env.OC_DEV } } : {}),
       config: { experimental: { todo: true } },
       tui: { recording: true, viewport: { cols: 130, rows: 40 } },
     },
     ({ ui, llm }) =>
       Effect.gen(function* () {
         yield* llm.queue(
           Llm.toolCall({ index: 0, id: "call_todo", name: "todowrite", input: { todos } }),
           Llm.finish("tool-calls"),
         )
         const updated = todos.map((t, i) => ({ ...t, status: i === 0 ? "in_progress" : "pending" }))
         yield* llm.queue(
           Llm.toolCall({ index: 0, id: "call_todo2", name: "todowrite", input: { todos: updated } }),
           Llm.finish("tool-calls"),
         )
         yield* llm.queue(Llm.text("Todo list created."))
         yield* ui.submit("Plan the work")
         yield* ui.waitFor("Todo list created.").pipe(Effect.ignore)
         yield* Effect.sleep("1500 millis")
         yield* ui.screenshot("sidebar-todos")
         const frame: any = yield* ui.capture()
         yield* Effect.log("\n" + frame.lines.map((l: any) => l.spans.map((s: any) => s.text).join("")).join("\n"))
       }),
   )

   Run it with opencode-drive: opencode-drive run ./drive.ts. It drives opencode from your PATH; set OC_DEV to the path of an OpenCode checkout to run that from source instead.
2. opencode-agent

   added

   reproduced

   on Oct 20, 2026
