Add FFE evaluation metrics#3911
Draft
leoromanovsky wants to merge 4 commits into
Draft
Conversation
|
Benchmarks [ tracer ]Benchmark execution time: 2026-05-23 19:50:04 Comparing candidate commit 2a48c49 in PR branch Found 0 performance improvements and 2 performance regressions! Performance is the same for 192 metrics, 0 unstable metrics. scenario:MessagePackSerializationBench/benchMessagePackSerialization-opcache
scenario:TraceSerializationBench/benchSerializeTrace-opcache
|
leoromanovsky
requested review from
dd-oleksii and
typotter
and removed request for
a team
![chatgpt-codex-connector[bot]](https://avatars.githubusercontent.com/in/1144995?s=60&v=4){kind=small}
There was a problem hiding this comment.
💡 Codex Review
Here are some automated review suggestions for this pull request.
Reviewed commit: f021234c39
ℹ️ About Codex in GitHub
Your team has set up Codex to review pull requests in this repo. Reviews are triggered when you
- Open a pull request for review
- Mark a draft as ready
- Comment "@codex review".
If Codex has suggestions, it will comment; otherwise it will react with 👍.
Codex can also answer questions or update the PR. Try commenting "@codex address that feedback".
Comment on lines
+63
to
+64
| if (!is_array($parts) || !isset($parts['scheme'], $parts['host']) || strtolower($parts['scheme']) !== 'http') { | ||
| return false; |
There was a problem hiding this comment.
When OTEL_EXPORTER_OTLP_METRICS_ENDPOINT or OTEL_EXPORTER_OTLP_ENDPOINT is configured with an https:// collector URL, resolveEndpoint() passes that value through but post() rejects every scheme except http, causing flush() to fail and drop all buffered feature_flag.evaluations for that common remote-collector setup. Either support TLS sockets here or avoid accepting HTTPS endpoints as if they were usable.
Useful? React with 👍 / 👎.
leoromanovsky
added a commit
to DataDog/libdatadog
that referenced
this pull request
May 23, 2026
Adds a parallel pathway for PHP feature-flag evaluation metrics mirroring the FfeExposures forwarder. dd-trace-php encodes `feature_flag.evaluations` counters as OTLP/protobuf in PHP (via its existing PHP 7-safe `OtlpMetricEncoder`) and ships the encoded bytes to the sidecar, which POSTs them to the user-configured OTLP HTTP metrics intake. Why a sibling action instead of reusing FfeExposures: - The OTLP collector is not the Datadog Agent. It's user-configurable via OTEL_EXPORTER_OTLP_METRICS_ENDPOINT (default http://localhost:4318/v1/metrics), so the endpoint travels with the payload rather than being derived from the sidecar session's agent base URL. - Content type differs (application/x-protobuf vs application/json). - No EVP subdomain header. - The payload is binary protobuf, not a JSON string. dd-trace-php side (PR DataDog/dd-trace-php#3911) will refactor its existing `OtlpHttpMetricTransport` (which currently does PHP-side HTTP I/O, violating the architectural rule "no I/O outside the sidecar") to call this new FFI. Validation: - `cargo test -p datadog-sidecar ffe` passes 7 tests (3 exposures + 4 metrics). - `cargo check -p datadog-sidecar-ffi` clean.
This was referenced May 23, 2026
leoromanovsky
added a commit
that referenced
this pull request
May 23, 2026
Per Bob's PR review (2026-05-22), the tracer extension must perform no I/O outside the sidecar. Replaces the raw-socket `AgentExposureTransport` with `SidecarExposureTransport`, which forwards exposure batches to the libdatadog sidecar via a new native PHP function `\DDTrace\send_ffe_exposures` that calls the `ddog_sidecar_send_ffe_exposures` FFI added in DataDog/libdatadog#2026. PHP side: - Delete `Internal/Exposure/AgentExposureTransport.php` (raw socket POST to the Agent EVP proxy). - Add `Internal/Exposure/SidecarExposureTransport.php` that JSON-encodes the batch and calls `\DDTrace\send_ffe_exposures()`. Fire-and-forget; the sidecar handles retries. - Update `ExposureWriter::createDefault()` to instantiate the sidecar transport. - Drop the obsolete `testAgentTransportBuildsAgentEvpRequest` PHPUnit test (HTTP construction now lives in libdatadog, covered by `cargo test -p datadog-sidecar ffe_flusher`). - Add `Internal/DefaultEvaluationCompletedHook` and `Internal/CompositeEvaluationCompletedHook` so production callers go through a composite hook factory. In this PR the composite contains only `ExposureHook`; the metrics PR (#3911) contributes `EvaluationMetricHook` and the file conflict at merge resolves by combining both. Update `Client::create()` to call `DefaultEvaluationCompletedHook::create()`. C/Rust bridge: - Declare `ddog_ByteSlice` (and underlying `ddog_Slice_U8`) in `components-rs/common.h` for the metrics path; declare both `ddog_sidecar_send_ffe_exposures` and `ddog_sidecar_send_ffe_metrics` in `components-rs/sidecar.h`. - Add C wrappers `ddtrace_sidecar_send_ffe_exposures(zend_string *)` and `ddtrace_sidecar_send_ffe_metrics(zend_string *endpoint, zend_string *payload_bytes)` in `ext/sidecar.{h,c}` that call the FFI with the current sidecar transport + instance id + queue id. - Declare native PHP functions `\DDTrace\send_ffe_exposures(string): bool` and `\DDTrace\send_ffe_metrics(string, string): bool` in `ext/ddtrace.stub.php`; add corresponding arginfo entries and `ZEND_FUNCTION` registrations in `ext/ddtrace_arginfo.h`; implement `PHP_FUNCTION(DDTrace_send_ffe_exposures)` and `PHP_FUNCTION(DDTrace_send_ffe_metrics)` in `ext/ddtrace.c`. - Bump `libdatadog` submodule to FFE branch tip `29762335c` (which provides both FFIs). The submodule will be bumped to the libdatadog main commit once #2026 merges. Docs: - Add `docs/php-ffe-stack/{stack,system}-pr3910.{mmd,png}` for this PR. Validation: - `php vendor/bin/phpunit --config phpunit.xml tests/api/Unit/FeatureFlags` → 41 tests, 174 assertions, OK. - libdatadog sidecar tests (`cargo test -p datadog-sidecar ffe_flusher`) → 3 passed, on the pinned submodule commit. - Mermaid PNGs regenerate via `npx @mermaid-js/mermaid-cli`. `make test_featureflags` and `make test_c TESTS=tests/ext/ffe/...` will run in CI; running them locally requires rebuilding the extension which is gated behind libdatadog #2026 merging.
Adds the M3 evaluation-metrics layer on top of the hook PR (#3909) as a sibling of the EVP exposures PR (#3910). Records `feature_flag.evaluations` for both PHP 7 (DD Client hook) and PHP 8 (OpenFeature SDK hook); both paths share `EvaluationMetricHook::sharedWriter()` for unified aggregation. OTLP/protobuf payloads are encoded in PHP via the existing `OtlpMetricEncoder` and delivered to the user-configured OTLP HTTP metrics intake through the libdatadog sidecar (`ddog_sidecar_send_ffe_metrics` FFI added in DataDog/libdatadog#2026). This branch is force-pushed (user-authorized one-time exception to the no-force-push rule, 2026-05-23) to restructure history away from being linearly stacked on the M2 exposures PR (#3910). The PR now stacks directly on the hook PR (#3909) as a sibling of the EVP PR. PHP side: - Add `Internal/Metric/EvaluationMetricWriter` with bounded series aggregation, drop accounting, and shutdown flush. - Add `Internal/Metric/EvaluationMetricHook` (DD Client hook) and `OtlpMetricEncoder` (PHP 7-safe protobuf encoding). - Add `Internal/Metric/SidecarOtlpMetricsTransport` that calls `\DDTrace\send_ffe_metrics()` (FFI declared in #3910). Endpoint resolution: `OTEL_EXPORTER_OTLP_METRICS_ENDPOINT`, falling back to `OTEL_EXPORTER_OTLP_ENDPOINT + /v1/metrics`, default `http://localhost:4318/v1/metrics`. - Add `DDTrace\OpenFeature\EvalMetricsHook` implementing `OpenFeature\interfaces\hooks\Hook` (after + error stages), registered on `DataDogProvider` via `setHooks()`. - `DataDogProvider` constructs its internal DD `Client` with `DefaultEvaluationCompletedHook::createWithoutMetric()` so the OpenFeature path records the metric via the OpenFeature hook (PR 3911 scope) and NOT via the DD Client hook — preventing double-counting. PHP 7 path keeps recording via the DD Client hook. - Add `Internal/CompositeEvaluationCompletedHook` and `Internal/DefaultEvaluationCompletedHook` (metric-only composite). This is the merge-conflict point with PR #3910's `[ExposureHook]` composite — second merge resolves by combining both hooks. - Update `Client::create()` to call `DefaultEvaluationCompletedHook::create()`. - Drop the obsolete `testOtlpTransportBuildsHttpProtobufRequest` PHPUnit test (HTTP construction now lives in libdatadog, covered by `cargo test -p datadog-sidecar ffe_metrics_flusher`). - Add `_files_openfeature.php` entry for `EvalMetricsHook.php`. C/Rust bridge: the `\DDTrace\send_ffe_metrics()` native function, its C wrapper `ddtrace_sidecar_send_ffe_metrics()`, and the `ddog_sidecar_send_ffe_metrics` FFI declaration in `components-rs/sidecar.h` were already added in #3910. This PR's branch picks up those changes once #3910 merges (or via the same libdatadog submodule pin during review). For development locally the libdatadog submodule is pinned to the FFE branch tip (`29762335c`). Docs: - Add `docs/php-ffe-stack/{stack,system}-pr3911.{mmd,png}` per the 4-PR documentation convention. Validation: - `php vendor/bin/phpunit --config phpunit.xml tests/api/Unit/FeatureFlags` → 40 tests, 160 assertions, OK. - Mermaid PNGs regenerate via `npx @mermaid-js/mermaid-cli`. `make test_featureflags`, OpenFeature PHPUnit, and ffe-dogfooding end-to-end validation will run in CI / are validated separately by FOLLOW-05 Steps 4–5.
leoromanovsky
force-pushed
the
leo.romanovsky/m3-ffe-evaluation-metrics
branch
from
f021234 to
e74b050
Compare
leoromanovsky
changed the base branch from
leo.romanovsky/m2-ffe-exposures
to
leo.romanovsky/m2-m3-evaluation-completed-base
Author
|
Force-pushed per the 2026-05-23 restructure. The branch was rebased: dropped the M2 exposure commit from history and reapplied just the M3-specific changes on top of #3909 (hook PR). The OTLP transport was also refactored from a PHP-side raw socket (the prior `OtlpHttpMetricTransport`) to a libdatadog sidecar call (`SidecarOtlpMetricsTransport` → `\DDTrace\send_ffe_metrics()` → `ddog_sidecar_send_ffe_metrics` FFI). This matches the same architectural rule Bob applied to #3910: tracer extension performs no I/O outside the sidecar. This is the one-time force-push authorized for the 4-PR restructure (no other branches gain force-push permission). `--force-with-lease` was used to fail safely if anything else had updated the remote. The branch now stacks directly on #3909 instead of on #3910 — sibling structure (M3 sibling of M2 under hook). CI will be red on the Rust compile job until DataDog/libdatadog#2026 merges and the submodule is bumped to a libdatadog/main commit containing both FFE FFIs. Locally the submodule is pinned to the FFE branch tip `29762335c` for development; `tests/api/Unit/FeatureFlags` 40 tests / 160 assertions pass against that pin. |
The SidecarOtlpMetricsTransport::resolveEndpoint() default ("http://localhost:4318/v1/metrics")
doesn't match the system-tests parametric setup, where the PHP test
client receives DD_AGENT_HOST=<test_agent_container> but no
OTEL_EXPORTER_OTLP_METRICS_ENDPOINT. The previous OtlpHttpMetricTransport
(replaced by this transport) derived the OTLP endpoint from DD_AGENT_HOST
+ port 4318. Restore that fallback so system-tests
test_php_ffe_evaluation_metric finds the test-agent OTLP intake.
Resolution order (now matches the old transport):
1. OTEL_EXPORTER_OTLP_METRICS_ENDPOINT (explicit)
2. OTEL_EXPORTER_OTLP_ENDPOINT + /v1/metrics
3. DD_AGENT_HOST + :4318/v1/metrics
4. localhost:4318/v1/metrics
The C/Rust bridge for the new native PHP functions \DDTrace\send_ffe_exposures() and \DDTrace\send_ffe_metrics() lives on the M2 EVP exposures PR (#3910) because that PR introduced the bridge when refactoring the exposure transport. PR #3911 (this PR) needs the same bridge for its OTLP metrics transport — without it the SidecarOtlpMetricsTransport silently drops batches because function_exists('\\DDTrace\\send_ffe_metrics') is false. Adds the same bridge files here so the M3 branch is independently compilable. At merge time the two PRs will conflict at the file level on these bridge files; resolution is deduplication (the bridge is identical in both PRs by design). Files added/modified: - components-rs/sidecar.h: declares ddog_sidecar_send_ffe_exposures and ddog_sidecar_send_ffe_metrics FFIs. - components-rs/common.h: declares ddog_ByteSlice typedef for the metrics payload. - ext/sidecar.h, ext/sidecar.c: C wrappers ddtrace_sidecar_send_ffe_exposures() and ddtrace_sidecar_send_ffe_metrics(). - ext/ddtrace.stub.php, ext/ddtrace_arginfo.h, ext/ddtrace.c: declares the native PHP functions and the PHP_FUNCTION implementations.
Pulls in libdatadog commit `875ec8f0e` ("fix(sidecar): dispatch FFE
actions before application-entry check"). Without this fix, the
`SidecarOtlpMetricsTransport::send()` call from PHP would silently
no-op for short-lived processes: the sidecar received the
`FfeMetrics` action but dropped it because the `Entry::Occupied`
gate on the application metadata had not yet fired.
This unblocks the parametric system-test
`Test_Feature_Flag_Parametric_Evaluation_Metrics::test_php_ffe_evaluation_metric`
which exercises the full PHP -> sidecar -> OTLP-HTTP-intake path
end-to-end. Local result: 26/27 FFE-scoped parametric tests pass
(remaining failure is the EVP exposure test, which lives on the
M2 PR #3910 branch).
leoromanovsky
added a commit
that referenced
this pull request
May 23, 2026
Pulls in libdatadog commit `875ec8f0e` ("fix(sidecar): dispatch FFE
actions before application-entry check") so the EVP exposure batch sent
via `ddog_sidecar_send_ffe_exposures` is no longer silently dropped
when the PHP runtime hasn't yet registered the application against the
sidecar's `QueueId`. Same fix is on the sibling PR #3911 (`2a48c4987")
for the OTLP metric path.
Without this submodule bump, `Test_Feature_Flag_Parametric_Exposures::test_php_ffe_exposure_event`
sees zero EVP POSTs at the test-agent because the sidecar's
`enqueue_actions` handler discards the `FfeExposures` action under
the `Entry::Occupied` gate.
leoromanovsky
added a commit
that referenced
this pull request
May 23, 2026
…macOS+colima
`build-debug-artifact` produces a `/output` bind mount via `-v
${TMP_OUT}:/output`. On macOS+colima only paths under $HOME are
mounted into the Linux VM; the macOS default `/var/folders/...` temp
dir is not, so writes from inside the container to `/output` land in
the VM and never propagate back to the host. The script exits without
error and the user's binaries dir is left with whatever stale artifact
was there before.
Pin TMP_OUT/TMP_PKG under $OUTPUT_DIR (which the user just passed as
an absolute, usable destination) so the bind mount is always on a
host-visible path. Inherits cleanup via the existing EXIT trap.
The same fix is independently on the M3 branch (#3911) as part of
e74b050; bringing it to the M2 branch (#3910) so both branches are
buildable on macOS without a `TMPDIR=$HOME/...` override.
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment
1 participant
Add this suggestion to a batch that can be applied as a single commit.This suggestion is invalid because no changes were made to the code.Suggestions cannot be applied while the pull request is closed.Suggestions cannot be applied while viewing a subset of changes.Only one suggestion per line can be applied in a batch.Add this suggestion to a batch that can be applied as a single commit.Applying suggestions on deleted lines is not supported.You must change the existing code in this line in order to create a valid suggestion.Outdated suggestions cannot be applied.This suggestion has been applied or marked resolved.Suggestions cannot be applied from pending reviews.Suggestions cannot be applied on multi-line comments.Suggestions cannot be applied while the pull request is queued to merge.Suggestion cannot be applied right now. Please check back later.
Motivation
Milestone 3: PHP emits
feature_flag.evaluationscounters with attributes matching the Go/JS/Java/.NET reference SDKs. Covers both PHP 7 (DD Client hook) and PHP 8 (OpenFeature SDK hook), with delivery routed through the libdatadog sidecar per the architectural rule that the tracer extension performs no I/O outside the sidecar.Planning/reference doc: https://docs.google.com/document/d/1NvMfTpZWLBlFmEFNjdnlMyeVpy5l7KD8qujGFco6w2w/edit?tab=t.0

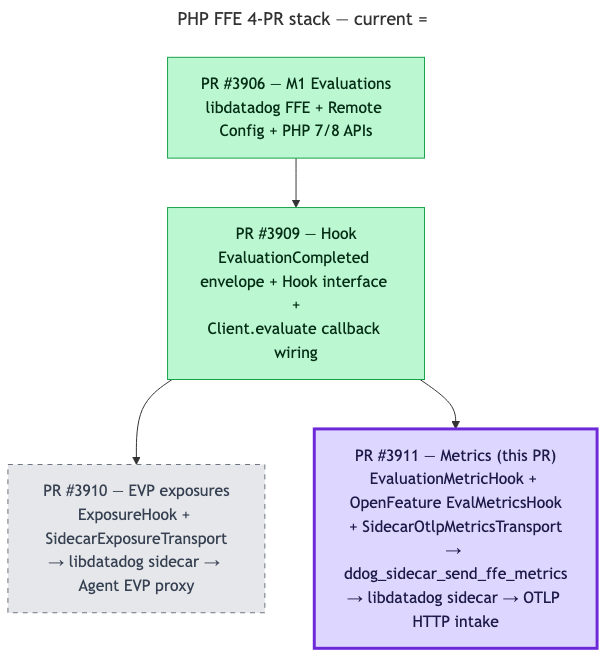

Where this PR fits in the stack
This is the OTLP metrics layer. Sibling of #3910 (EVP exposures) under the hook PR #3909.

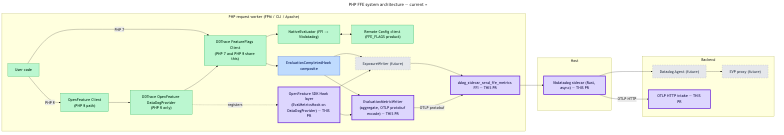

Where this PR fits in the target system
This PR contributes the EvaluationMetricWriter (in-PHP OTLP protobuf encoding via existing
OtlpMetricEncoder), the OpenFeature SDKHooklayer (EvalMetricsHookonDataDogProvider), theddog_sidecar_send_ffe_metricsFFI call path, and the OTLP HTTP intake leg (highlighted). EVP/Agent path is future for #3910.Changes
PHP side:
Internal/Metric/EvaluationMetricWriterwith bounded aggregation by attribute set, drop accounting, and shutdown flush.Internal/Metric/EvaluationMetricHook(DD Client hook) andOtlpMetricEncoder(PHP 7-safe OTLP/protobuf encoder).Internal/Metric/SidecarOtlpMetricsTransportthat JSON-encodes nothing — it passes the OTLP/protobuf bytes fromOtlpMetricEncoderto the native\DDTrace\send_ffe_metrics()FFI. Endpoint resolution:OTEL_EXPORTER_OTLP_METRICS_ENDPOINT, falling back toOTEL_EXPORTER_OTLP_ENDPOINT + /v1/metrics, defaulthttp://localhost:4318/v1/metrics.DDTrace\OpenFeature\EvalMetricsHookimplementingOpenFeature\interfaces\hooks\Hook(after/error stages) to match the architectural pattern used by Go/JS/Java/.NET. Registered onDataDogProviderviasetHooks().DataDogProviderconstructs its internal DDClientwithDefaultEvaluationCompletedHook::createWithoutMetric()so the OpenFeature path records the metric via the OpenFeature hook (NOT via the DD Client hook), preventing double-counting. PHP 7 path keeps recording through the DD Client hook.Internal/CompositeEvaluationCompletedHookandInternal/DefaultEvaluationCompletedHookreturning[EvaluationMetricHook]. This file conflicts with Add FFE exposure emission #3910's[ExposureHook]composite at merge time — resolution combines both hooks. Intentional cost of independent siblings.Client::create()to callDefaultEvaluationCompletedHook::create().C/Rust bridge: the
\DDTrace\send_ffe_metrics()native function and supporting C+Rust wiring were added in #3910's commit (because both transports share the bridge surface). This branch picks them up via the same libdatadog submodule pin to the FFE branch tip.Decisions
ddog_sidecar_send_ffe_metricsin feat(sidecar): forward FFE exposures to EVP proxy libdatadog#2026.OtlpMetricEncoderis PHP 7-safe; rewriting the encoder in Rust would be larger scope without functional benefit. Sidecar is a dumb HTTP relay for this path.after+error(notfinally). PHP OpenFeature SDK'sHook::finallysignature does NOT carryResolutionDetails(unlike Go/JS/Java/.NET), so a true finally-style port loses variant/reason info on the error path. The after+error split preserves attribute coverage.DataDogProviderusescreateWithoutMetric()so only the OpenFeature hook records on that path. PHP 7 path uses the DD Client hook.Dependencies
ddog_sidecar_send_ffe_exposuresandddog_sidecar_send_ffe_metrics).DefaultEvaluationCompletedHook.php(single-hook composite per PR); resolution at second-merge combines both hooks.History
This PR was originally stacked linearly on #3910 (which itself was the M2 PR with the exposures + hook seam folded together). Per the 2026-05-23 restructure, the branch was rebased onto #3909 (the standalone hook PR), the M2 exposure commit was dropped from history, the OTLP transport was refactored from PHP-side raw socket to the libdatadog sidecar, and the branch was force-pushed (user-authorized one-time exception to the no-force-push rule).
